OPzV battery offers the highest cycle life among all other lead-acid batteries, with significant savings on the cost per cycle. They are maintenance-free and have robust construction, providing the highest level of reliability and performance. OPzV battery has superior deep discharge durability and excellent recharging properties. They are the best choice of batteries for industrial projects, even in remote installations with minimal supervision. In some regions of the world, where electricity is unstable, high-capacity backup power is required. Whether you’re generating backup power from solar panels or wind turbines, frequent power outages require high-performing batteries with excellent deep cycling capabilities.
OPzV batteries offer high-capacity reserve power and true deep cycling performance. With a design life of 20 years and a maintenance-free operation, OPzV batteries are perfect for regions with an unstable supply of electricity. OPzV batteries are also completely spill-proof, which makes them safe to install anywhere, even in remote environments with minimal supervision. battery OPzV is also available in a front terminal design upon request.
KIJO is one of the leading OPzV battery manufacturers in China, and can offer OPzV batteries (includes 8 OPzV 800, 10 opzv 1000, 12 OPzV 1500, 24 OPzV 3000, etc.) at competitive prices, RFQ now!
Model | Nominal Voltage (V) | Capacity (C10) | Dimension | Weight | Terminal | ||||||||
(Ah) | Length | Width | Height | Total Height | Kg | Lbs | |||||||
mm | inch | mm | inch | mm | inch | mm | inch | ||||||

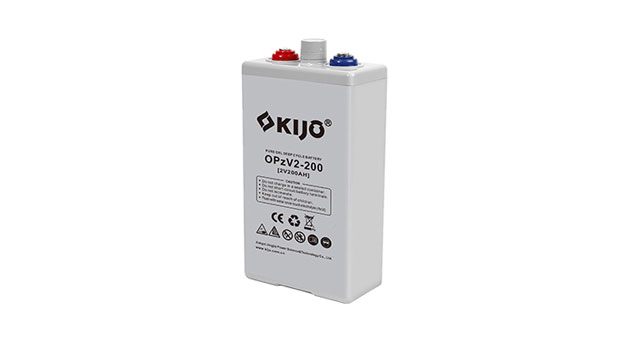

OPzV2-200 | 2 | 200 | 103 | 4.06 | 206 | 8.11 | 356 | 14.02 | 389 | 15.31 | 18.5 | 40.8 | M8 |
OPzV2-250 | 2 | 250 | 124 | 4.88 | 206 | 8.11 | 356 | 14.02 | 389 | 15.31 | 22.5 | 49.6 | M8 |

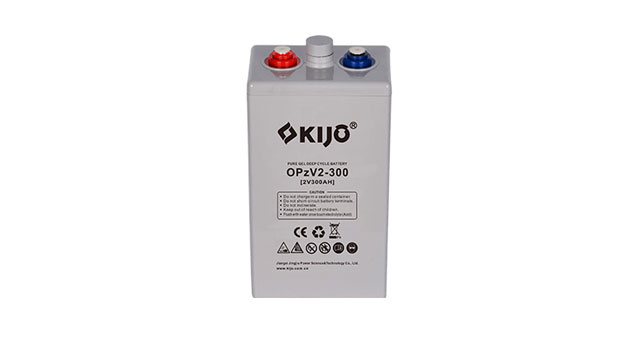

OPzV2-300 | 2 | 300 | 145 | 5.71 | 206 | 8.11 | 356 | 14.02 | 389 | 15.31 | 26.5 | 58.4 | M8 |
OPzV2-350 | 2 | 350 | 124 | 4.88 | 206 | 8.11 | 473 | 18.62 | 505 | 19.88 | 28.5 | 62.9 | M8 |

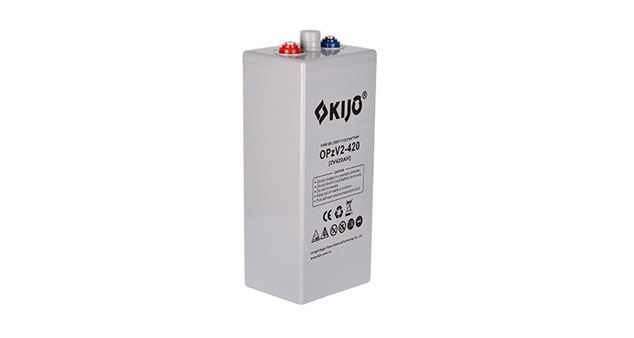

OPzV2-420 | 2 | 420 | 145 | 5.71 | 206 | 8.11 | 473 | 18.62 | 505 | 19.88 | 33.5 | 73.9 | M8 |
OPzV2-500 | 2 | 500 | 166 | 6.54 | 206 | 8.11 | 473 | 18.62 | 505 | 19.88 | 38.5 | 84.9 | M8 |
OPzV2-600 | 2 | 600 | 145 | 5.71 | 206 | 8.11 | 646 | 25.43 | 678 | 26.69 | 47.0 | 103.6 | M8 |

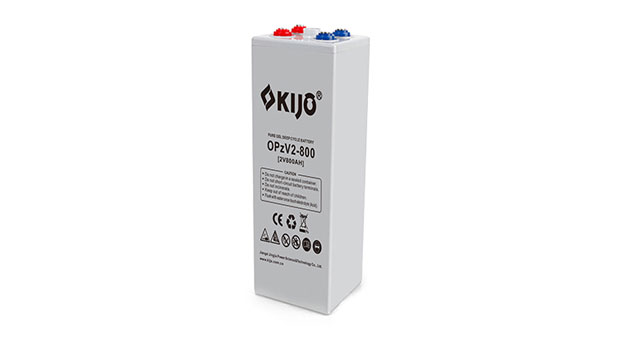

OPzV2-800 | 2 | 800 | 191 | 7.52 | 210 | 8.27 | 646 | 25.43 | 678 | 26.69 | 63.0 | 138.9 | M8 |

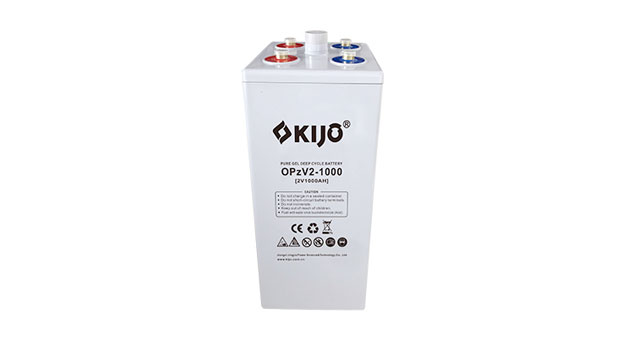

OPzV2-1000 | 2 | 1000 | 233 | 9.17 | 210 | 8.27 | 646 | 25.43 | 678 | 26.69 | 77.5 | 171.0 | M8 |
OPzV2-1200 | 2 | 1200 | 275 | 10.83 | 210 | 8.27 | 646 | 25.43 | 678 | 26.69 | 91.0 | 200.6 | M8 |

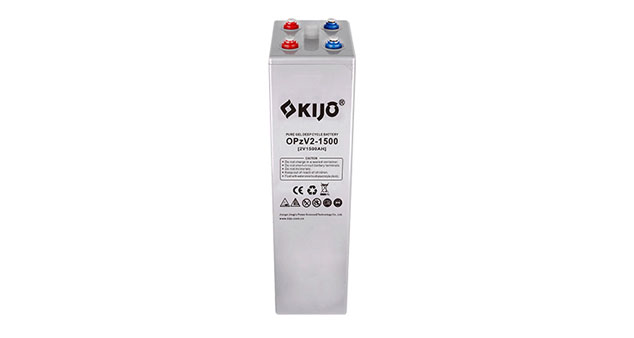

OPzV2-1500 | 2 | 1500 | 275 | 10.83 | 210 | 8.27 | 795 | 31.30 | 827 | 32.56 | 112.0 | 246.9 | M8 |

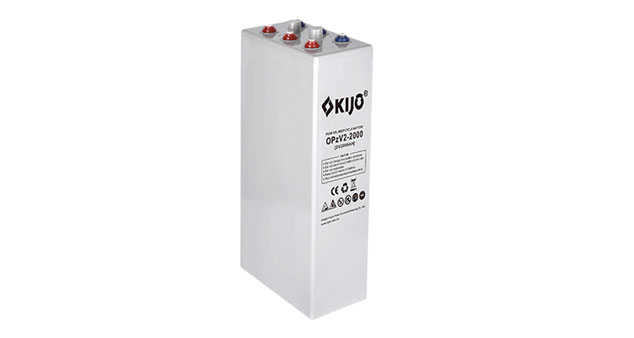

OPzV2-2000 | 2 | 2000 | 399 | 15.71 | 214 | 8.42 | 772 | 30.39 | 807 | 31.77 | 150.0 | 331.0 | M8 |

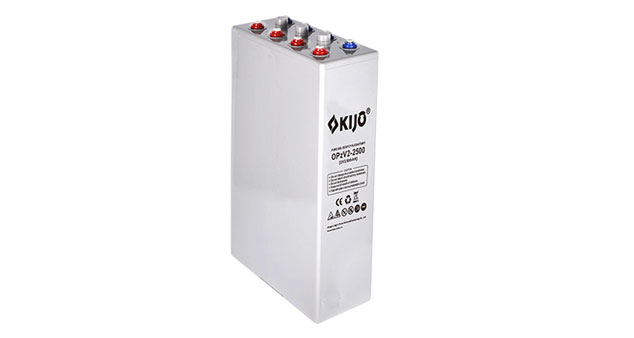

OPzV2-2500 | 2 | 2500 | 487 | 19.17 | 212 | 8.35 | 772 | 30.39 | 807 | 31.77 | 188.5 | 415.6 | M8 |
OPzV2-3000 | 2 | 3000 | 576 | 22.68 | 212 | 8.35 | 772 | 30.39 | 807 | 31.77 | 225.0 | 496.0 | M8 |
Capacity range: 2V200Ah-3000Ah,12V45Ah-200Ah.
Designed floating service life: 20 years at 25℃.
Cycle usage: 50% DOD above 2600 cycles.
Self-discharge rate: ≦3%/ month.
Wide operating temperature range: -40 to 60℃
UPS/EPS systems
Solar energy system/Wind Energy System
Renewable Energy Systems
Energy storage projects
Telecom Systems
Electric Utilities
Boat
Date center
etc.
