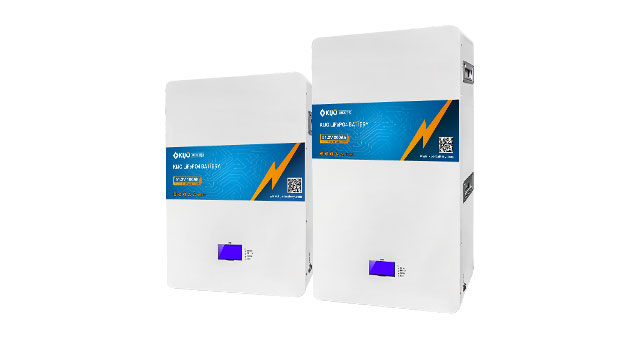

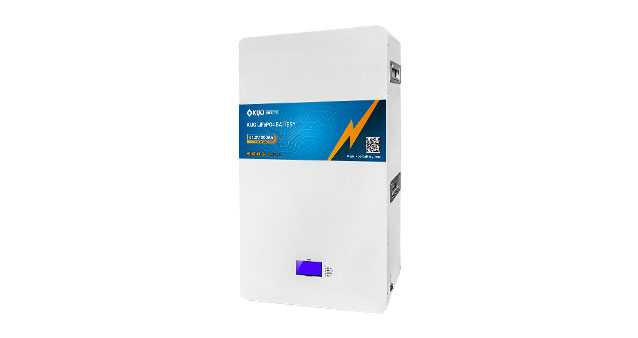

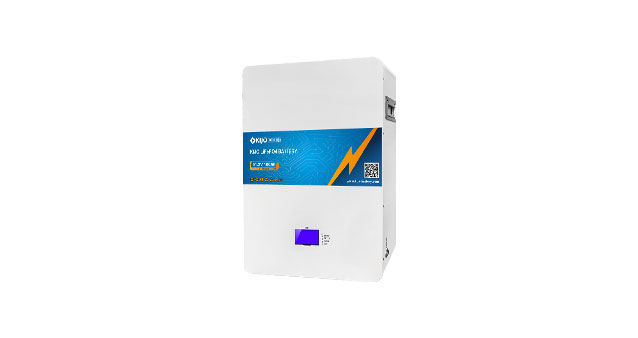

LV Wall-mounted Power Supply consists of small plastic boxes that plug directly into the wall but they come in a variety of performance and quality levels. The wall-mounted power supply is a space-saving option because you only need to plug one end into the wall and the other into your device. It also saves time and energy.
Flexible capacity options:2.56KWH、5.12KWh.10.24KWh;
Flexible capacity options:5.12KWh、10.24KWh
Excellent safety of LiFePO4 battery.

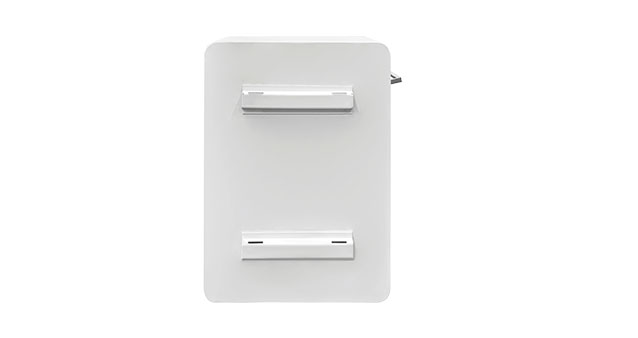

Easy installation with modular and wall-mounted design.
Battery Type: Lithium iron Phosphate (LFP)
Installation: Wall-mounted.
BMS Monitoring ParametersBMS: SOC, System voltage, current, cell voltage cell temperature, PCBA temperaturemeasurement.
Communication Port: CAN、RS485.
Design Life: >10 years.
Certification:CE、UN38.3、UL1973(Cell) 、IEC62619 (Cell).
Charging operating temperature range:0°C~55°C;
Discharge working temperature range:- 20°C~55°C.
IDC
Base station
Solar power station
DPS
Energy storage
Microgrid energy storage
