LV Rack-mounted Power Supply
LV Rack-mounted Power Supply
lv rack mounted power supply 04
lv rack mounted power supply 04

LV Rack-mounted Power Supply

The inverter converts the direct current (DC) of the LV Rack-mounted power supply to alternating current (AC) and distributes it to each component of an electronic device. The rack-mounted DC power supplies are stored in a rack. Holders stack many of these small yet strong power supplies in a single rack or use them as a stand-alone power source.

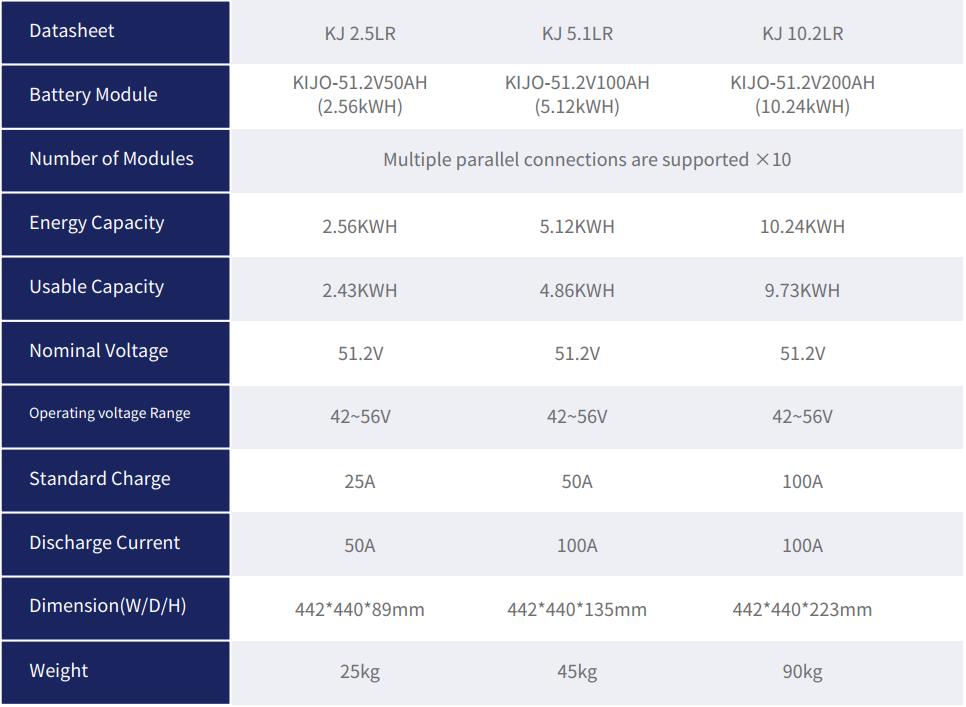

Specification of LV Rack-mounted Power Supply



Characteristic of LV Rack-mounted Power Supply


  • Flexible capacity options:2.56KWH、5.12KWh.10.24KWh;

  • Excellent safety of LiFePO4 battery;

  • Easy installation with modular and Rack-mount design;

  • Battery Type: Lithium iron Phosphate (LFP)

  • Installation: Rack-mount design.

  • BMS Monitoring ParametersBMS: SoC, System voltage, current, cell voltage cell temperature, PCBA temperature measurement.

  • Communication Port: CAN、RS485

  • Design Life: >10 years.

  • Certification:CE、UN38.3、UL1973(Cell).

  • IEC62619(Cell).

  • Charging operating temperature range0°C~55°C;

  • Discharge working temperature range:-20°C~55°C.

Application of LV Rack-mounted Power Supply

  • IDC

  • Base station

  • Solar power station

  • DPS

  • Energy storage

  • Microgrid energy storage
