JM series battery is specially designed for UPS systems, emergency power, and security system applications. Using a thick plate and high corrosion resistance grid alloy, matching with a high-impact AGM separator, the battery maintains high consistency for better performance and reliable standby service life.
Model | Nominal | Capcity | Dimension | Weight | Terminal | ||||||||
Length | Width | Height | Total Height | Kg | Lbs | ||||||||
V | Ah | mm | inch | mm | inch | mm | inch | mm | inch | ||||

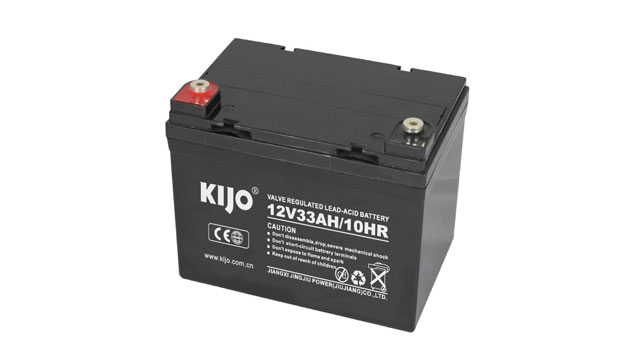

12 | 33 | 210 | 8.27 | 130 | 5.12 | 167 | 6.57 | 167 | 6.57 | 10.0 | 22.05 | M6 | |
12 | 33 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 12.0 | 26.46 | M6 | |

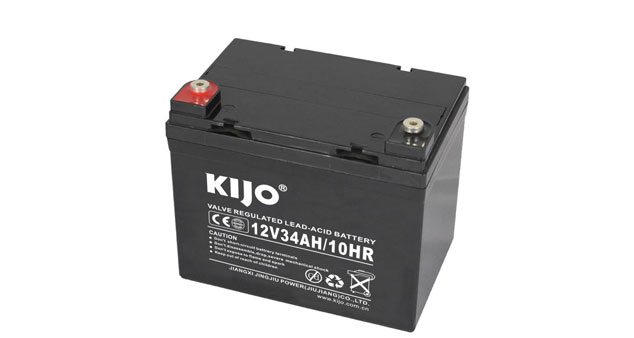

| JM12-34A | 12 | 34 | 195 | 7.68 | 130 | 5.12 | 163 | 6.42 | 167 | 6.57 | 11.5 | 25.35 | M6 |

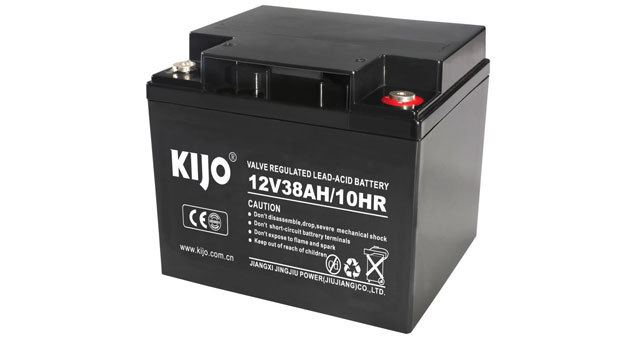

12 | 38 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 12.5 | 27.56 | M6 | |
| JM12-38C | 12 | 38 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 12.8 | 28.22 | M6 |

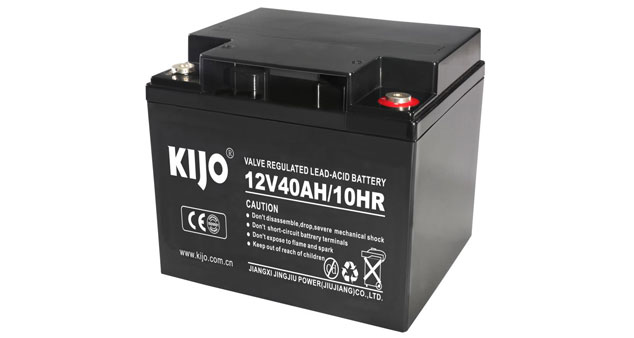

| JM12-40B | 12 | 40 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 13.2 | 29.10 | M6 |
| JM12-40D | 12 | 40 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 12.3 | 27.12 | M6 |
| JM12-46 | 12 | 46 | 197 | 7.76 | 165 | 6.50 | 172 | 6.77 | 172 | 6.77 | 14.6 | 32.19 | M6 |
| JM12-50A | 12 | 50 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 208 | 8.19 | 15.5 | 34.17 | M6 |
| JM12-50Y | 12 | 50 | 350 | 13.87 | 166 | 6.54 | 175 | 6.89 | 175 | 6.89 | 16.0 | 35.30 | M6 |

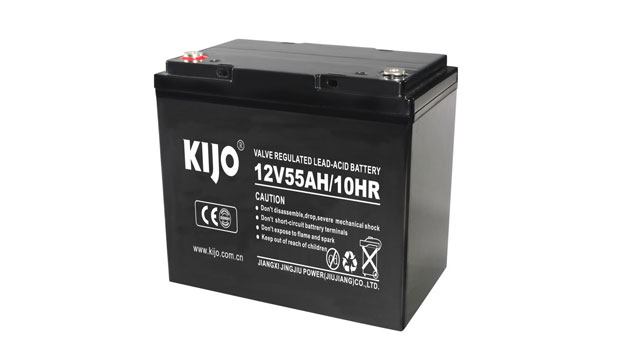

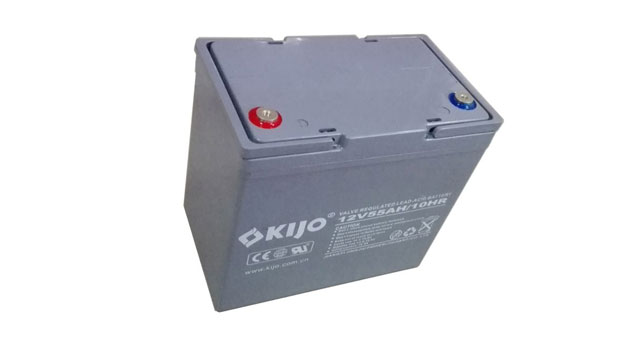

| JM12-55A | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 208 | 8.19 | 17.5 | 38.58 | M6 |
| JM12-55B | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 205 | 8.07 | 208 | 8.19 | 16.5 | 36.38 | M6 |
| JM12-55C | 12 | 55 | 230 | 9.06 | 138 | 5.43 | 212 | 8.35 | 215 | 8.46 | 17.5 | 38.58 | M6 |

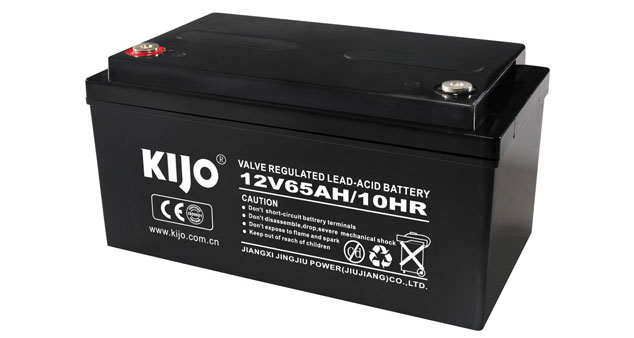

| JM12-65D | 12 | 65 | 350 | 13.78 | 166 | 6.54 | 175 | 6.89 | 175 | 6.89 | 19.0 | 41.89 | M8 |
| JM12-65E | 12 | 65 | 350 | 13.78 | 166 | 6.54 | 175 | 6.89 | 175 | 6.89 | 20.6 | 45.42 | M8 |

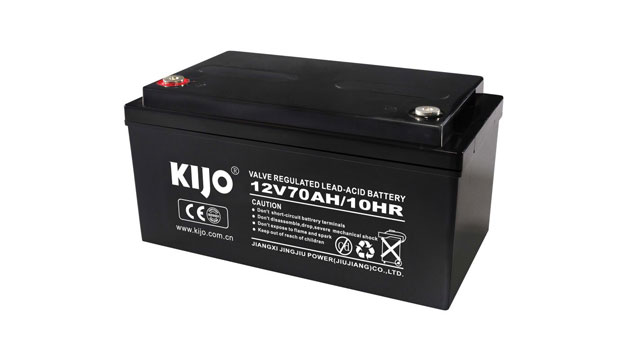

12 | 70 | 258 | 10.16 | 168 | 6.61 | 208 | 8.19 | 211 | 8.31 | 22.5 | 49.60 | M6 | |
12 | 70 | 258 | 10.16 | 168 | 6.61 | 208 | 8.19 | 211 | 8.31 | 21.8 | 48.06 | M6 | |
12 | 78 | 350 | 13.78 | 166 | 6.54 | 175 | 6.89 | 175 | 6.89 | 22.8 | 50.26 | M8 | |

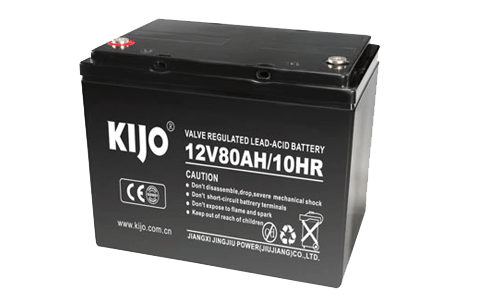

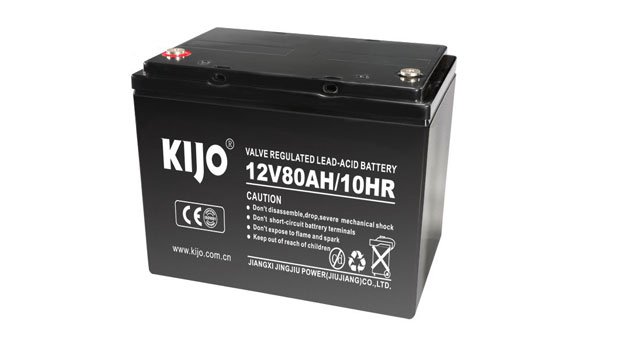

| JM12-80B | 12 | 80 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 25.0 | 55.12 | M8 |
12 | 80 | 258 | 10.16 | 168 | 6.61 | 208 | 8.19 | 211 | 8.31 | 24.0 | 52.91 | M6 | |
| JM12-80Y | 12 | 80 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 25.0 | 55.12 | M8 |
| JM12-85A | 12 | 85 | 258 | 10.16 | 168 | 6.61 | 211 | 8.31 | 214 | 8.43 | 26.0 | 57.32 | M6 |
12 | 85 | 261 | 10.28 | 169 | 6.65 | 212 | 8.35 | 215 | 8.46 | 26.0 | 57.32 | M6 | |

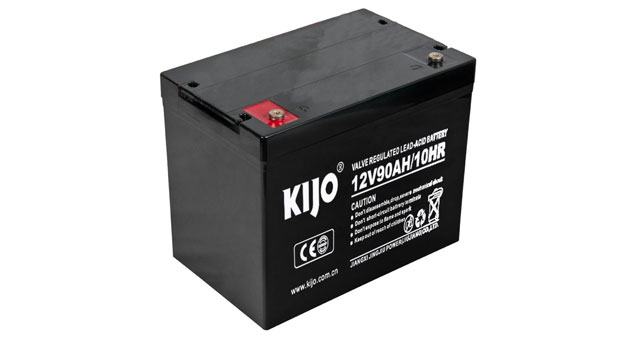

12 | 90 | 307 | 12.09 | 168 | 6.61 | 211 | 8.31 | 214 | 8.43 | 26.0 | 57.32 | M6 | |
| JM12-90E | 12 | 90 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 27.0 | 59.52 | M8 |
| JM12-90Z | 12 | 90 | 330 | 12.99 | 171 | 6.73 | 217 | 8.54 | 220 | 8.66 | 26.5 | 58.42 | M8 |
| JM12-95C | 12 | 95 | 307 | 12.09 | 168 | 6.61 | 211 | 8.31 | 214 | 8.43 | 28.0 | 61.73 | M6 |

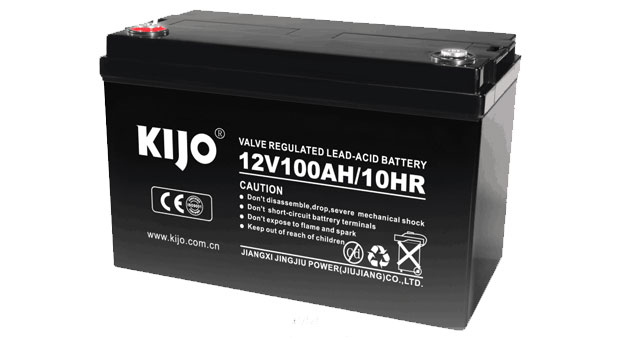

| JM12-100A | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 29.5 | 65.04 | M8 |
12 | 100 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 30.8 | 67.90 | M8 | |
| JM12-100D | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 28.0 | 61.73 | M8 |
| JM12-100F | 12 | 100 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 32.5 | 71.70 | M8 |
| JM12-100CL | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 217 | 8.54 | 220 | 8.66 | 30.0 | 66.13 | M8 |
| JM12-100EL | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 217 | 8.54 | 220 | 8.66 | 26.5 | 58.42 | M8 |
| JM12-100YL | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 217 | 8.54 | 220 | 8.66 | 28.0 | 61.73 | M8 |
| JM12-100L | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 217 | 8.54 | 220 | 8.66 | 29.0 | 63.93 | M8 |
| JM12-110D | 12 | 110 | 330 | 12.99 | 171 | 6.73 | 216 | 8.50 | 219 | 8.62 | 32.0 | 70.55 | M8 |

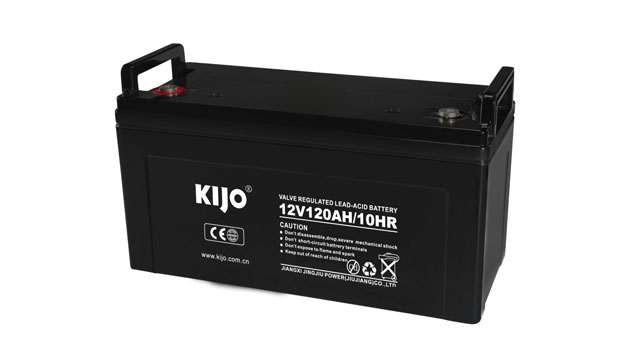

12 | 120 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 35.0 | 77.16 | M8 | |
12 | 120 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 37.2 | 82.01 | M8 | |
12 | 120 | 407 | 16.02 | 173 | 6.81 | 237 | 9.33 | 237 | 9.33 | 33.5 | 73.85 | M8 | |
12 | 120 | 407 | 16.02 | 173 | 6.81 | 216 | 8.50 | 216 | 8.50 | 33.5 | 73.85 | M8 | |
12 | 150 | 484 | 19.06 | 170 | 6.69 | 241 | 9.49 | 241 | 9.49 | 45.0 | 99.21 | M8 | |
| JM12-150C | 12 | 150 | 484 | 19.06 | 170 | 6.69 | 241 | 9.49 | 241 | 9.49 | 47.0 | 103.62 | M8 |
| JM12-150D | 12 | 150 | 484 | 19.06 | 170 | 6.69 | 241 | 9.49 | 241 | 9.49 | 42.0 | 92.59 | M8 |
| JM12-150F | 12 | 150 | 484 | 19.06 | 170 | 6.69 | 241 | 9.49 | 241 | 9.49 | 44.0 | 97.00 | M8 |
| JM12-180A | 12 | 180 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 54.0 | 119.05 | M8 |
| JM12-190A | 12 | 190 | 533 | 20.98 | 207 | 8.15 | 215 | 8.46 | 218 | 8.58 | 53.5 | 117.95 | M8 |

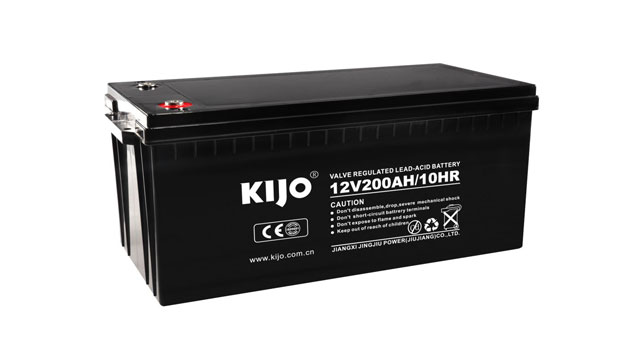

12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 57.0 | 125.66 | M8 | |
12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 59.0 | 130.07 | M8 | |
12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 240 | 9.45 | 59.0 | 130.07 | F16 | |
| JM12-200G | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 61.5 | 135.58 | M8 |
| JM12-200H | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 222 | 8.74 | 60.5 | 133.38 | M8 |
| JM12-200L | 12 | 200 | 522 | 20.55 | 240 | 9.45 | 219 | 8.62 | 240 | 9.45 | 57.0 | 125.66 | F16 |
| JM12-220A | 12 | 220 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 223 | 8.78 | 64.0 | 141.10 | M8 |

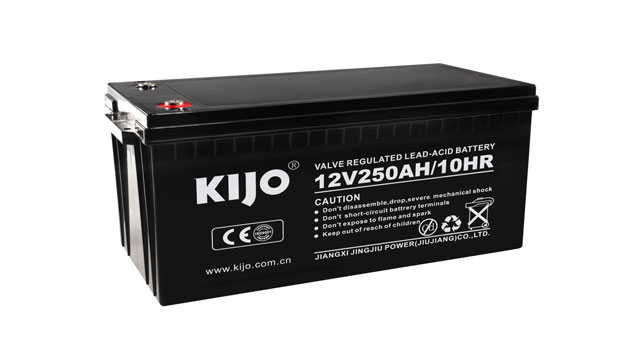

12 | 250 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 223 | 8.78 | 68.0 | 149.91 | M8 | |
12 | 250 | 520 | 20.47 | 268 | 10.55 | 220 | 8.66 | 223 | 8.78 | 71.0 | 156.53 | M8 | |
Valve-regulated design, no free liquid electrolyte, Maintenancefree
Designed floating service life: 10 years @ 25˚C
Stable performance and small internal resistance, good high performance for recycling use
Thickened Sn alloy plate and the grid with corrosion resistance
Wide operating temperature range: -15-35˚C
Self-discharge rate: ≤ 3% / month
UPS uninterrupted power supply, EPS equipment, toys, lamps and lanterns, computers, electric wheelchair, portable device, medical equipment, cable TV, rolling shutter door, outdoor mobile speakers, electric scooter, electronic cash register.
